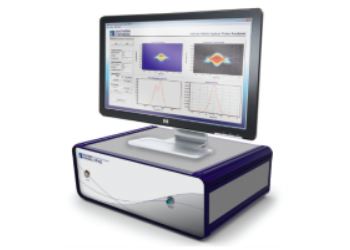

The HR150 Frequency Resolved Optical Gating (FROG) pulse analyzer measures pulse intensity and phase in both spectral and temporal domains, yielding a complete pulse characterization. With its long delay arm and high-resolution spectrometer, it can measure chirped pulses up to 50 ps wide or transform-limited pulses up to 10 ps wide.

Features

Intensity and phase measurement for pulses up to 50 ps (with spectral FWHM >0.2 nm)

Autocorrelation measurement of up to 50 ps pulses (no limit on spectral FWHM)

No need for beam alignment with the connectorized optical input

Dedicated software for measurement and recovery

Specifications

Input pulse temporal FWHM*:  0.3 - 10 ps (Transform limited pulses)

Temporal scan range:  200 ps

Temporal resolution:  15 fs

Input centre wavelength**:  1520 - 1610 nm

Input pulse spectral FWHM:  0.2 - 10 nm

Spectral resolution:  80 pm

Pulse repetition rate:  Independent

Input RF clock required:  No

Input connector type:  FC/APC or FC/PC

Input peak power (saturation):  3000 mW²

Input peak power (sensitivity)***:  500 mW²

Dimensions (Unit):  410(W) x 420(D) x 140(H) mm

Dimensions (Shipping case):  740(W) x 550(D) x 380(H) mm

Weight (unit only):  15.5 kg

Weight (unit in shipping case):  29.0 kg

PC Interface method USB

Minimum PC requirements: Pentium 4, 512MB RAM, USB 2.0

Supply voltage:  110 - 250 VAC, 50 - 60 Hz

* Broader pulses of up to 50 ps are measureable if the spectral FWHM is within the specified range.

** Other centre wavelengths are also available. Please enquire for details.

*** Minimum value needed for a good recovery; product of average and peak power.
